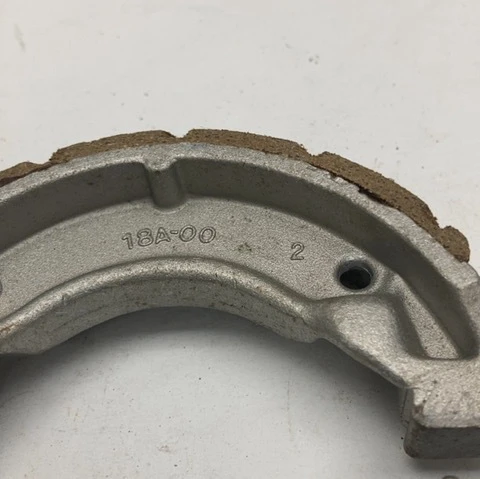

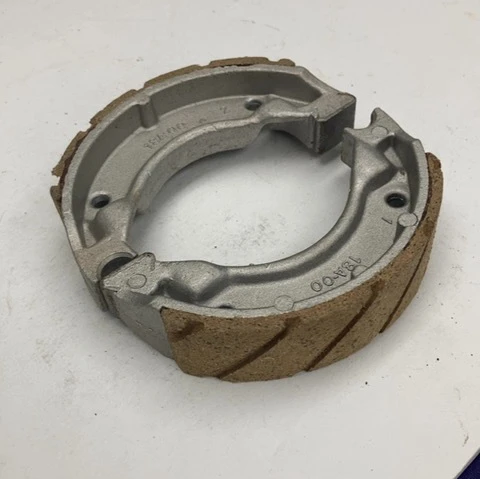

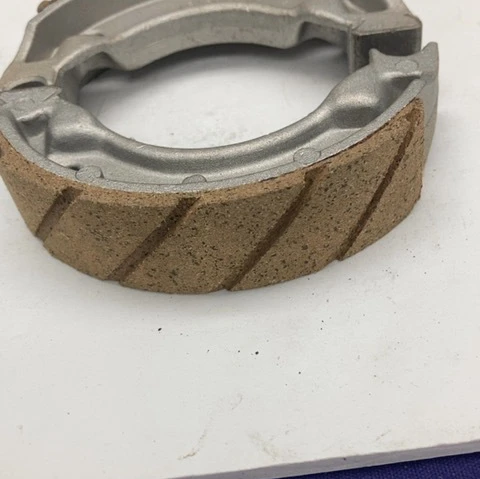

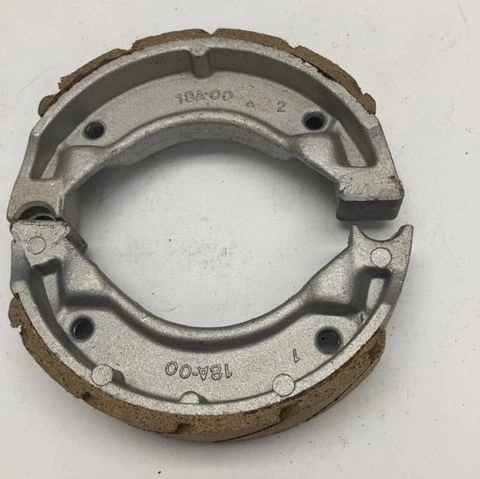

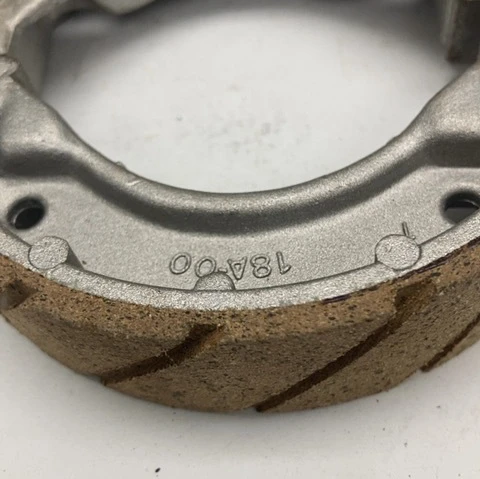

EMGO 92-27264 Grooved Brake Shoes (BS229) – Yamaha DT50 / PW80 / YFM100
$11.95
Grooved 110 x 25 mm drum brake shoe pair; older EMGO part number 92-27264, BS229 cross-reference. The later EMGO catalog lists the matching 93-27264 application group. Non-asbestos lining.
Selected fitment: Yamaha DT50, 1988-1990: front and rear. Yamaha PW80, 1983-1997: rear (earlier label lists through 1996). New Dealer Old Stock. Not in Original Packaging. One set of two shoes.
2 in stock
EMGO 92-27264 Grooved Brake Shoes (BS229) – Yamaha DT50 / PW80 / YFM100
Condition: New Dealer Old Stock. Not in Original Packaging. Inspect the shoes and any supplied springs before installation.
Brand: EMGO
Manufacturer part number: 92-27264
Cross-reference: BS229
Part type: Drum brake shoe set
Style: Water-grooved
Friction lining: Non-asbestos replacement lining
Shoe diameter x lining width: 110 x 25 mm
Placement: Front or rear, depending on model
Sale unit: One set of two shoes; stock quantity counts sets, not individual shoes.
EMGO describes its replacement brake shoes as sold by the pair, with water grooves to channel water and dirt away from the braking surface. These are aftermarket replacements, not original-equipment Honda, Yamaha, or Kawasaki parts.
Applications and brake location
- Yamaha DT50, 1988-1990: front and rear.
- Yamaha PW80, 1983-1997: rear (earlier label lists through 1996).
- Yamaha YT60 Tri-Zinger, 1984-1985: rear; YF60S Moto-4, 1985-1986: rear.
- Yamaha YFM100 Champ, 1987-1988: front.
- Yamaha CW50 Zuma II, 1989-1990 and 1997-1999: front and rear; 1998-2001: rear.
- Yamaha YFM80, 1987-1988: front according to an earlier label; verify the shoe against the installed drum before ordering.
Part references: Yamaha 18A-25330-00, 22F-25330-00, 36R-25330-00, 4BX-W2536-00, 2JL-W2536-00, 2JN-W2536-00, 18A-W2534-00, 22F-W2536-00; an earlier label references EBC 518.
Vehicle model, model year, trim and brake location matter. Compare the old shoe outline, drum size and vehicle parts diagram before purchase. One shoe pair services one drum; a two-front-drum ATV may require two sets.
| Weight | 0.75 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
| Condition |
New Dealer Old Stock. Not in Original Packaging. |
| Manufacturer Part Number |
92-27264 |
| Placement on Vehicle |
Front or rear ,depending on model |
| Part Type |
Drum Brake Shoe Set |
| Shoe Diameter x Width |
110 x 25 mm |
